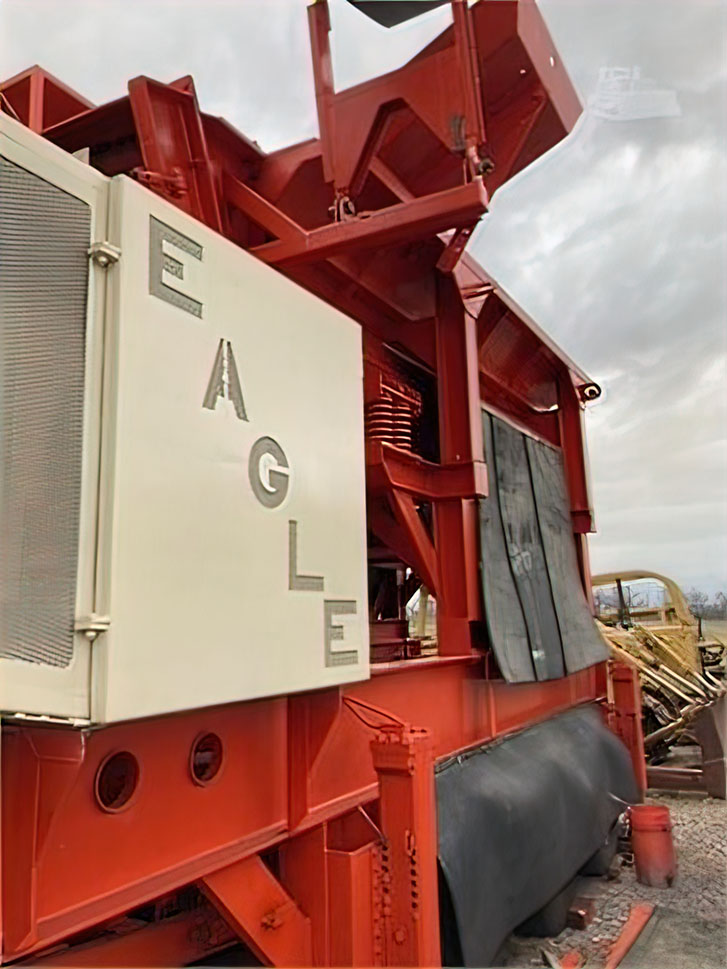

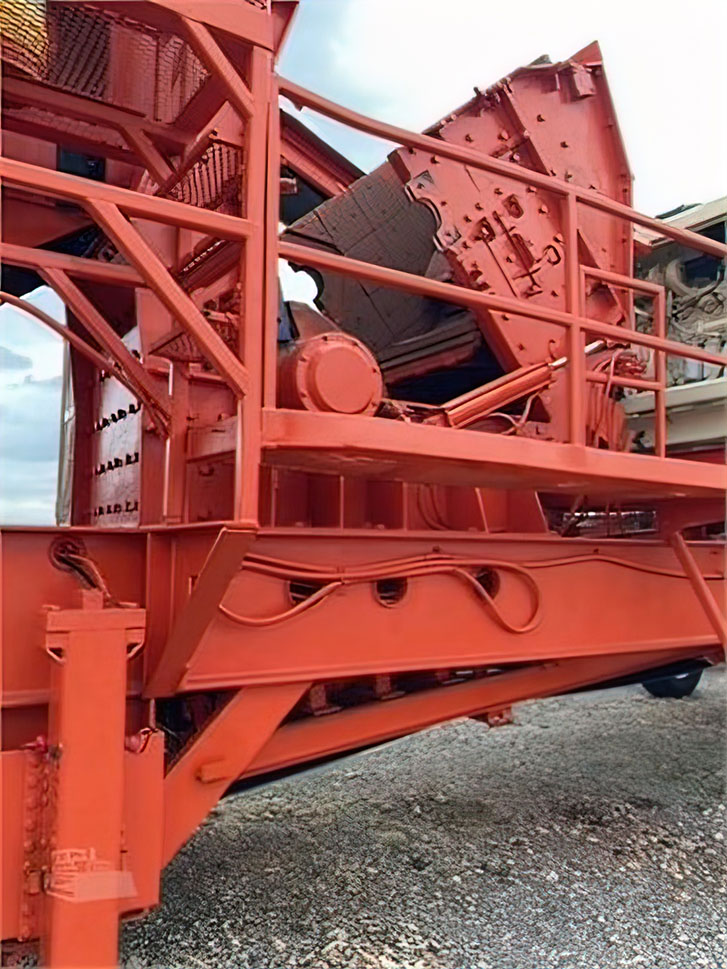

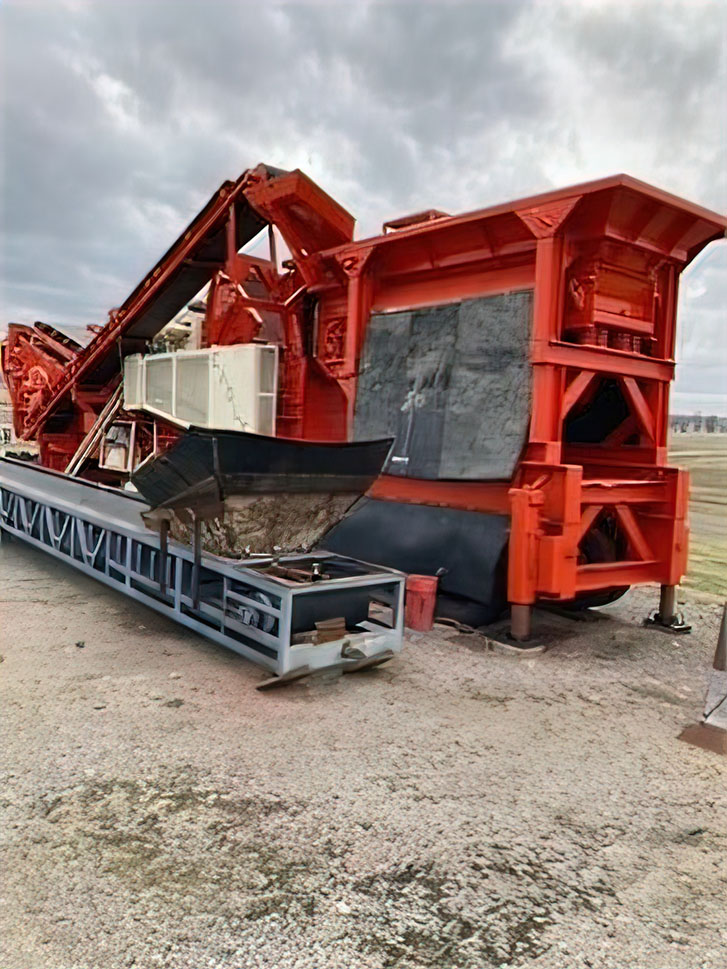

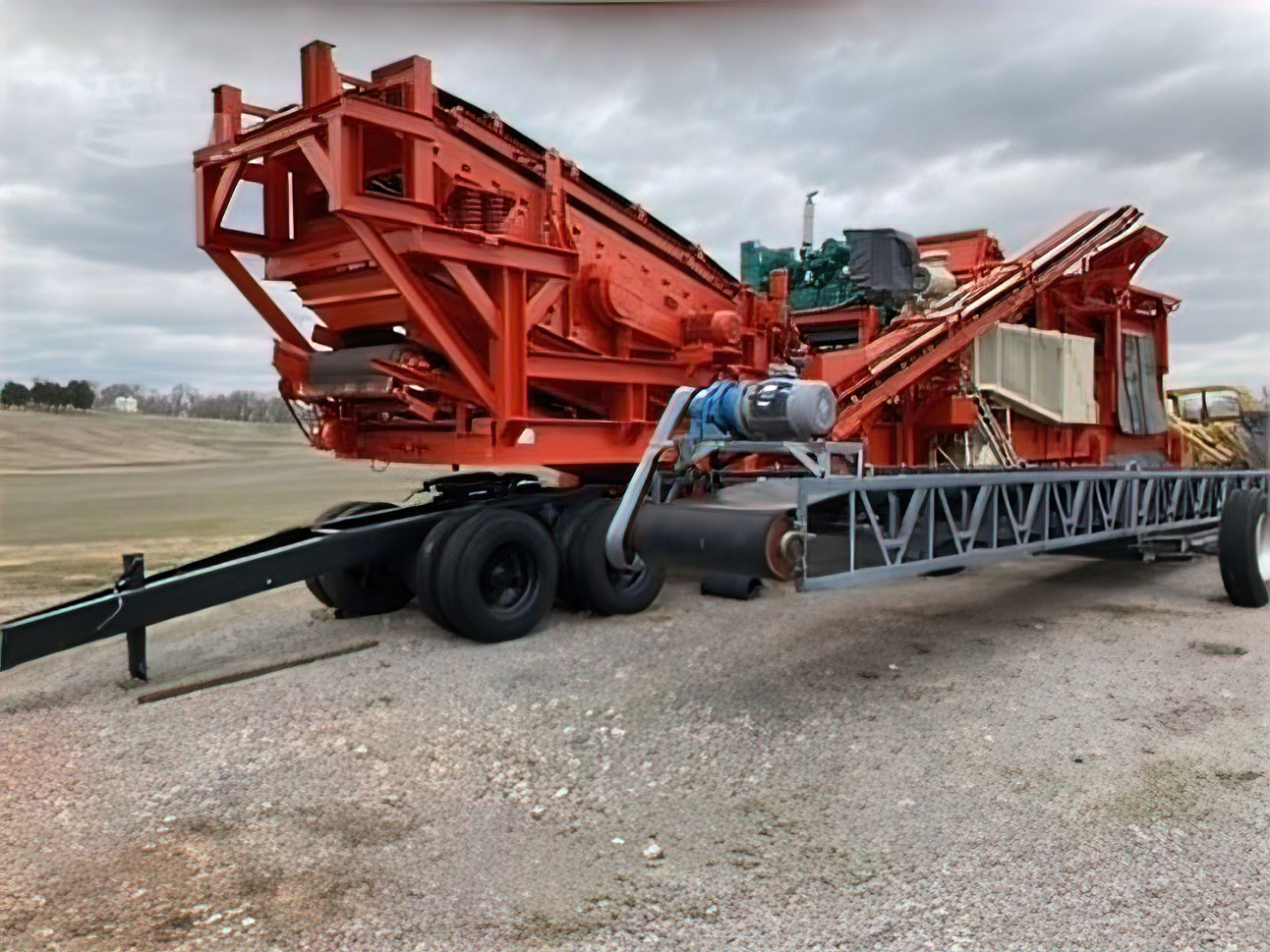

Eagle Ultramax 1000-15
Reference File Number: F2321
Main features
- Eagle 1000-15 closed-circuit crushing and screening on one chassis
- Extensive reconditioning and rebuild
- Unique two-step, 5' grizzly deck to remove fines before crushing
- Standard grizzly bypass chute and available cross-belt conveyor with flop gate
- Includes plant-mounted electrical control panel
- Hydraulic retractable return conveyor and folding side conveyor
- Variable Frequency Drive (VFD)for feeder speed
- Includes wireless remote control for the feeder shutdown and all motor stop
- Vibrating Feeder 16' x 39"
- Feeder Grizzly Deck 60" long 2 step
- Plant Power Supply Diesel On-Plant Power Supply Electric 325HP / 242kW diesel engine and 140kW generator 200HP
- Discharge Conveyor Width 42"
- Two Deck Inclined Screen 5' x 14'
- Top Screen Deck Cross Conveyor Width 18"
- Bottom Screen Deck Cross Conveyor Width 18"
- Fines Screen Conveyor Width 48"
- Return Conveyor (Hydraulic Fold) Width 24"
